Unit

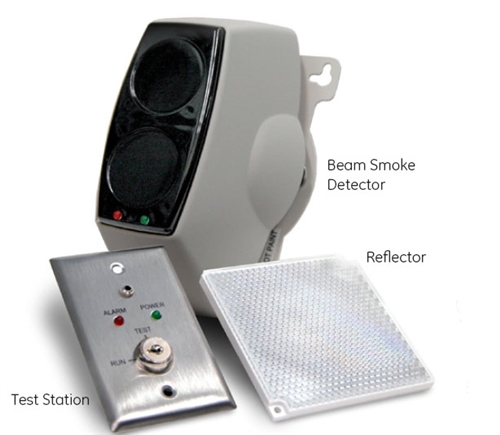

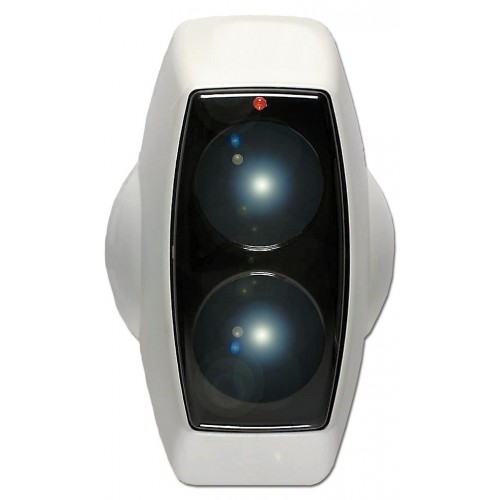

Combined transmitter and receiver unit
Range
Range 10-100 meters
Sensitivity Levels
4 x fixed sensitivity/threshold levels
Modes
2 x automatic variable sensitivity modes
Operate Mode
Operates in the Infra-Red light spectrum
Alignment Type
Numerical indicators to aid beam alignment
Indicator
Standby, fault and alarm LED indicators visible from the front and bottom
Alignment Angle
±10° horizontal and vertical beam alignment
Automatic Features
Automatic drift compensation
Powered Function
Loop powered
Extra Features
Complies to EN54-12
Operating Voltage Range
15 to 32Vdc (24Vdc nominal)
Typical Standby Current
2mA @ 24Vdc (No communications, LED off)
Maximum Alarm Current (LED on)
8.5mA
Maximum Alignment Current
20mA
Weight
1.77kg
Max Wire Gauge for Terminals
2.5mm2
Colour
White trim, Black box
Material
Bayblend FR110 trim, Lexan lens cover, Noryl backbox
Reflector
200 x 230mm (10 – 70m range, supplied as standard)
Operating Temperature Range
–30ºC to +55ºC
Humidity
0 to 95% Relative Humidity (noncondensing)
IP Rating
IP54
