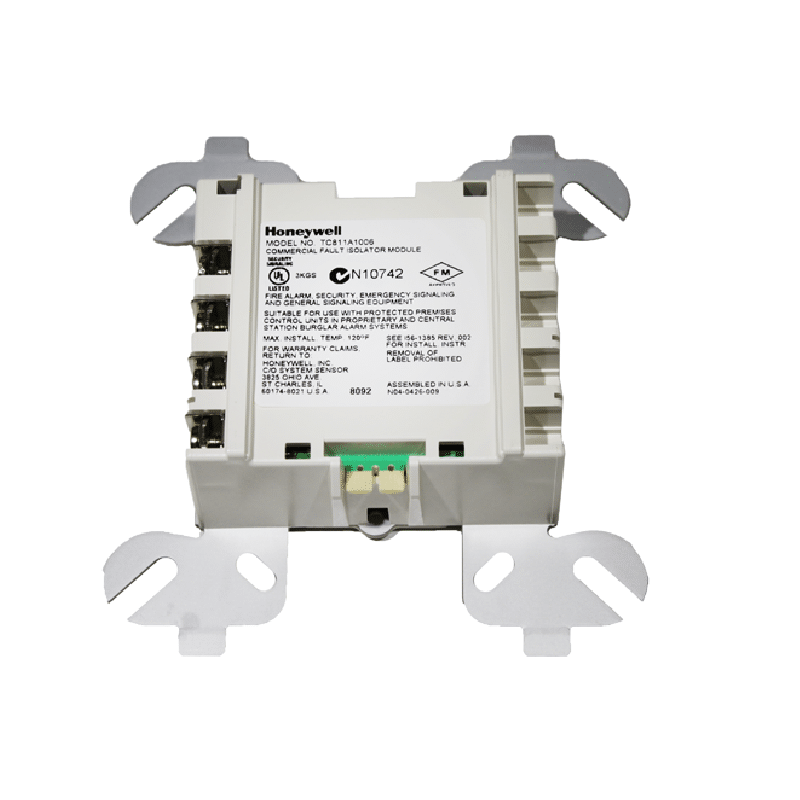

Loop & Branch Type
Generally used at each T-tap branch to limit the effect of short circuits on a branch to the devices on that branch in Style 4 loops.
Device Feature
Isolates devices so they can continue to operate normally in the event of a short-circuit on the SLC in Style 7 operation.
Power Type
Powered by SLC loop directly, no external power required.
Mounting
Mounts in standard junction boxes
Indication
Integral LED blinks to indicate normal condition.
Maximum Devices Support
Supports a maximum of 20 devices in-between isolators, except when using relay bases.
Operating Voltage
Loop 24VDC (16VDC - 28VDC) Power Limited
Standby Current
≤ 0.15mA
Action Current
≤ 1.5mA
Capacity
Material and Color of Enclosure
ABS, white (RAL9016)
Dimension
(L×W×H) 78mm×45.3mm×28.5mm (with base)
Weight
About 41.4g (with base)
Ingress Protection Rating
IP30 (not tested by UL)
Indicator
Yellow, flashes in the standby state, steady at fault.
Max closed impedance ( ZC MAX)
0.15Ω
Relative Humidity
≤ 93% Non-Condensing
