Type

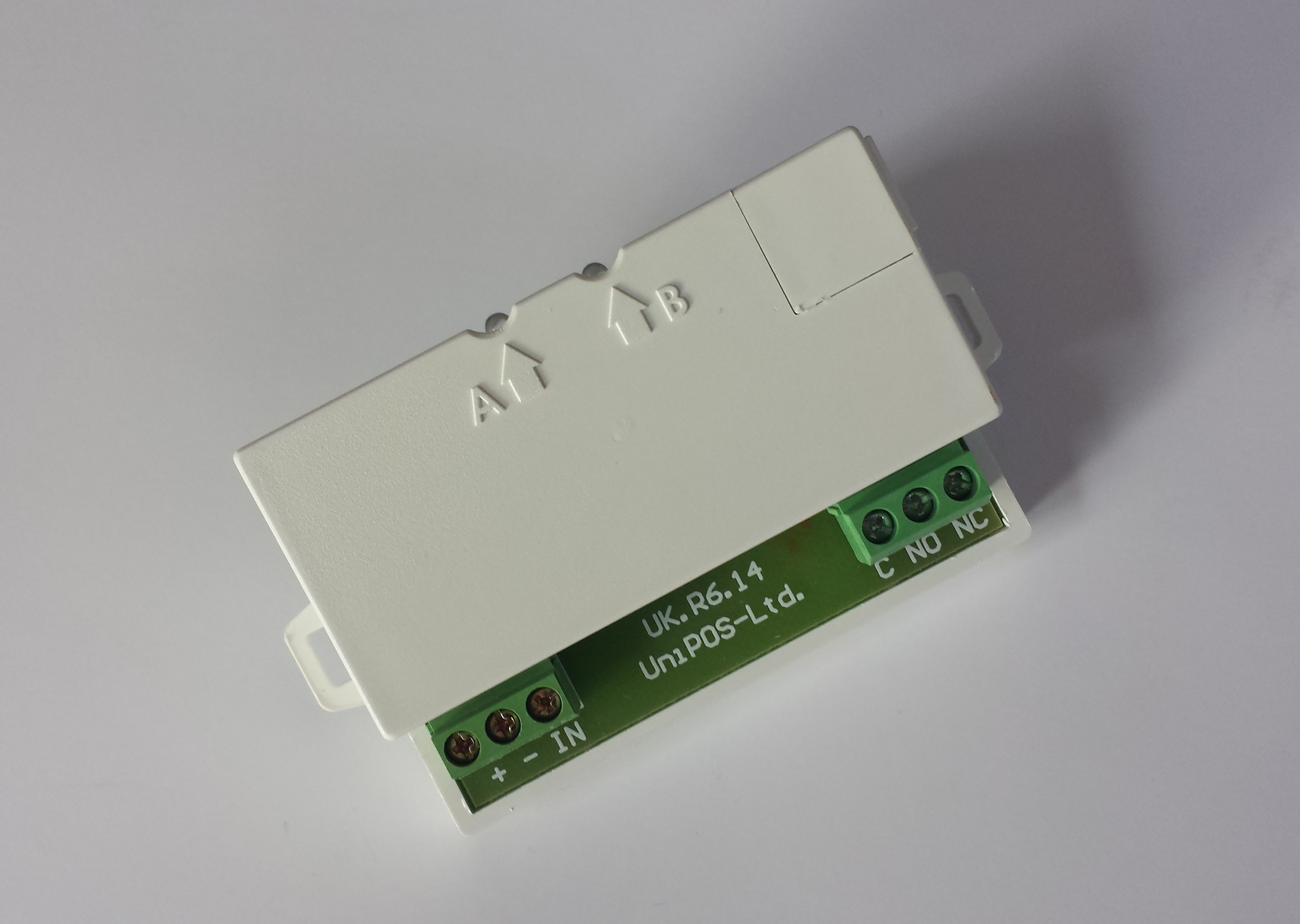

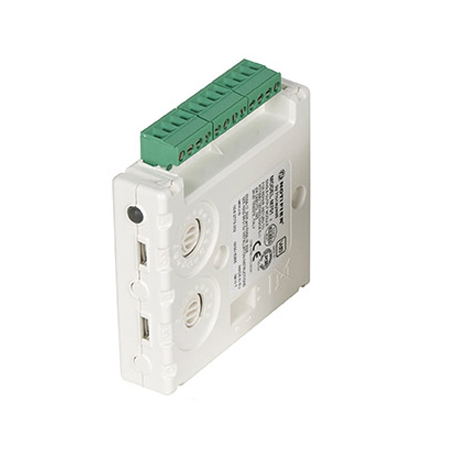

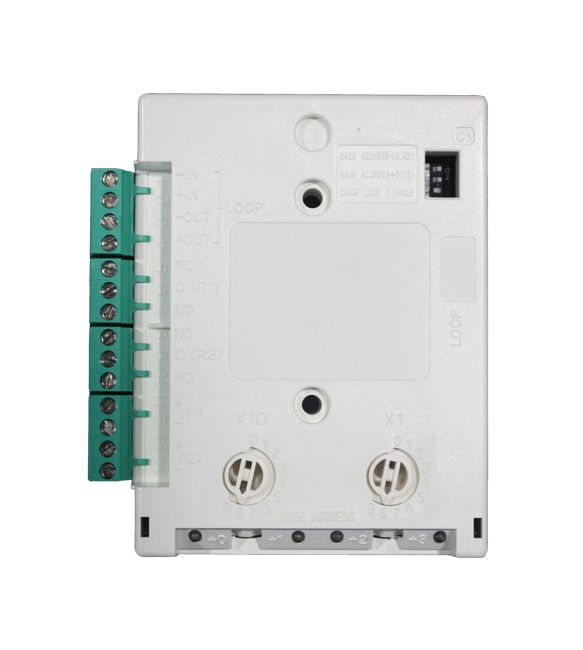

The Addressable Input/ Output Module is a fully monitored device
Work feature
Permits the interfacing of third party equipment with the Fire Alarm Control panel using normally open dry contact connections
Additional feature
Providing a changeover output relay to control ancillary equipment
LED indication
The Green LED will pulse every time the unit is polled by the panel.
The Yellow LED will be ON whenever there is a fault condition in the module.
The Red LED will be ON when there is an alarm condition at the module’s input.
Approval
LPCB, CE-CPD
Application
Input or Output (Single circuit)
Input
Programmable NO/NC
Output control mode
NO/NC passive contacts; 24Vdc
Output Capacity
Passive: 5A/24Vdc Active: 24Vdc/ 1A
Operating Current
Loop: Standby=1mA; Alarm=3mA PSU: Standby=2mA; Alarm=15mA
Operating Voltage
Loop: 24V (16V~28V) PSU: 24VDC (20VDC~28VDC)
Operating temp
0°C to +49°C
Relative humidity
93%
Protection rating
IP 30
Addressing
1 to 242 using P-9910B
Indoor use
Visual Indicator
LED, steady red when in an alarm state, 3-sec interval blinking at normal state; Yellow (fault)
Material and colour
ABS, off-white
Wiring
6 wires: 2 wire for loop ( non-polarized) ; 2 wire for power cable( non-polarized) ; 2 wire for output/input
Dimensions
120mmx80mmx39mm
