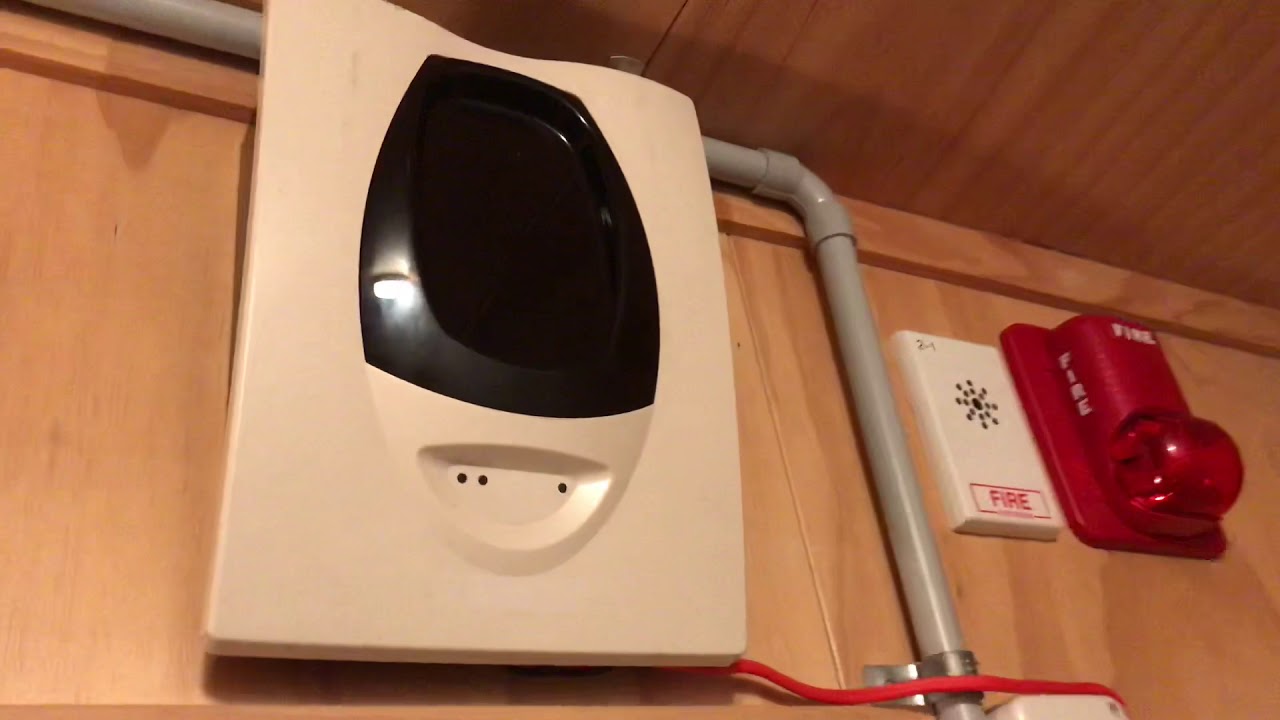

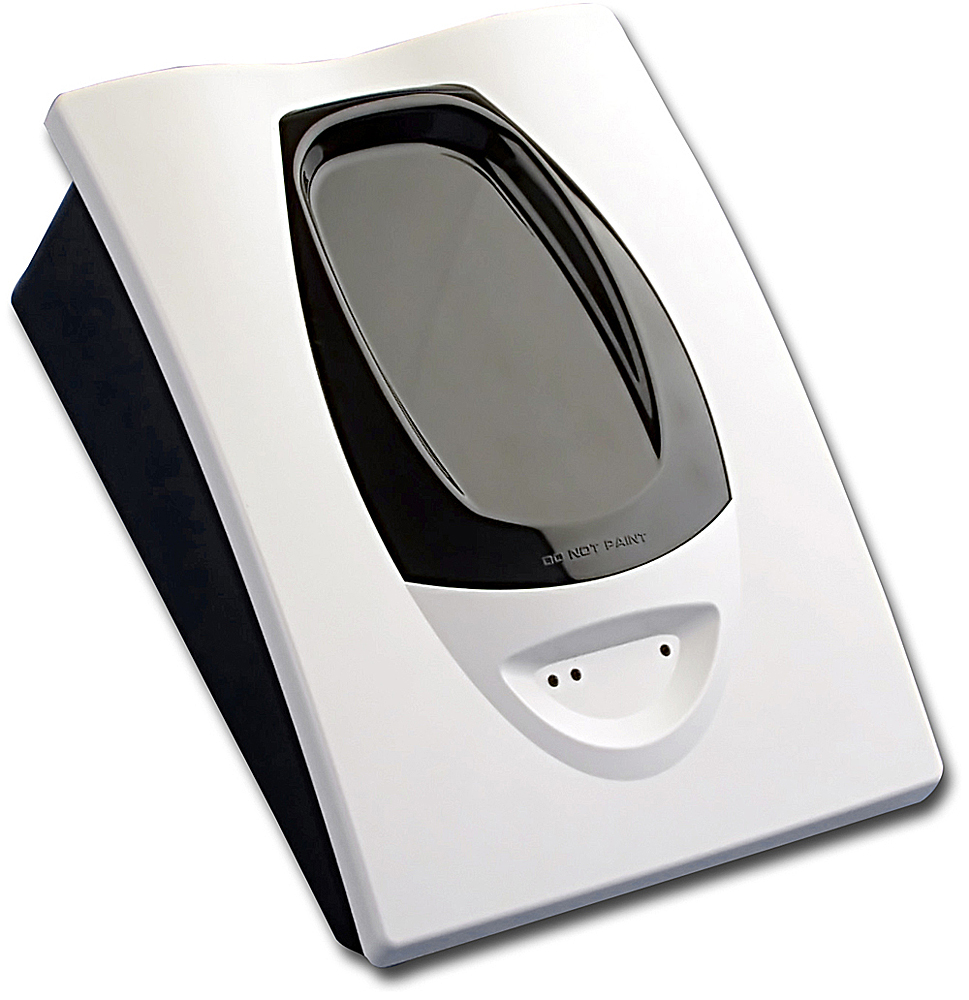

Conventional Beam Detector
Product Features
|
Protection range |
16- to 328-foot protection range |
|
Design |
Single-ended, reflective design |
|
Alignment |
User-friendly alignment procedure |
|
Sensitivity levels |
Six user-selectable sensitivity levels |
|
Sensitivity test feature |
Optional integral NFPA 72 sensitivity test feature |
|
Terminal blocks handling |
Removable plug-in terminal blocks |
|
Display |

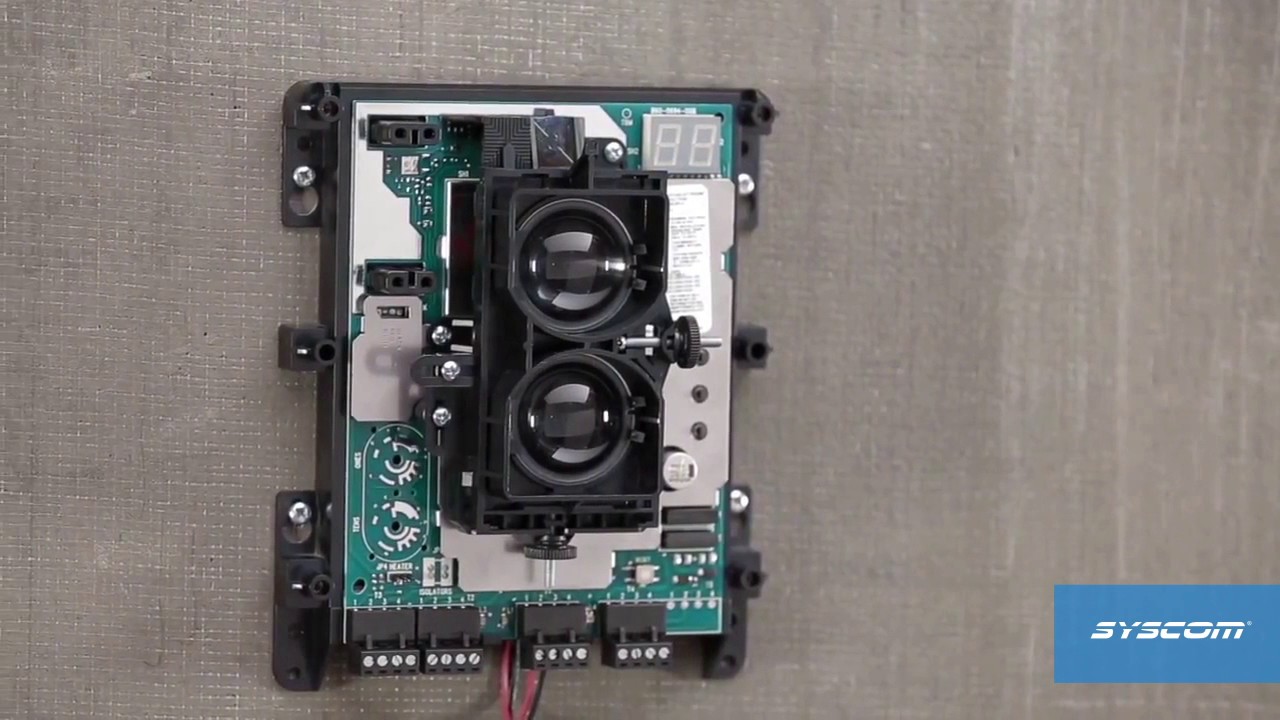

Digital display for easy alignment |
|
Signal deterioration |
Built-in automatic gain control compensates for signal deterioration from dust build-up |
|
Remote test |
Remote test station option |
|
Industry suitable |
Easiest alignment in the industry |
|
Heater kits |
Heater kits for transmitter/receiver and reflector option |
Specification
|
Voltage |
15 to 32 VDC |
|
Avg. Standby Current |
(24VDC) 17 mA Max |
|
Avg. Current |
During Testing 500 mA Max |
|
Alarm Current |
(24VDC) 38.5 mA Max |
|
Fault Current |
(24VDC) 8.5 mA Max |
|
Alignment Mode Current |
(24VDC) 28 mA Max |
|
Current |
450 mA Max at 32 V (per reflector) |
|
Power Consumption |
7.7 W at 24 V; 15 W at 32 V (per reflector) |
|
Protection Range |
16 ft to 328 ft (5 m to 100 m) |
|
Adjustment Angle |
±10 Degrees horizontal & vertical (The optics move independently of the unit) |
|
Sensitivity Levels |
Level 1 – 25%, Level 2 – 30%, Level 3 – 40%, Level 4 – 50%, Acclimate™ Level 1 – 30 to 50%, Acclimate Level 2 – 40 to 50% |
|
Fault Condition (Trouble) |
96% or more obscuration blockage In alignment mode Improper initial alignment Self-compensation limit reached |
|
Alignment Aid |
Optical gunsight, Integral signal strength indication, 2 digit display |
|
Alarm Indicator |
Local red LED and remote alarm |
|
Trouble Indicator |
Local yellow LED and remote trouble |
|
Normal Indicator |
Local flashing green LED |
